    Cable Extrusion Machine

    Wire and cable extruder is used by wire and cable factories to heat extrude polyethylene, PVC, etc. to insulate the wire core of the wire or to protect the cable. The whole machine is composed of pay off frame, main extruding machine, cooling water tank, blow dry, printer, capstan, take-up and arrangement machine, temperature control electrical operation cabinet, etc.

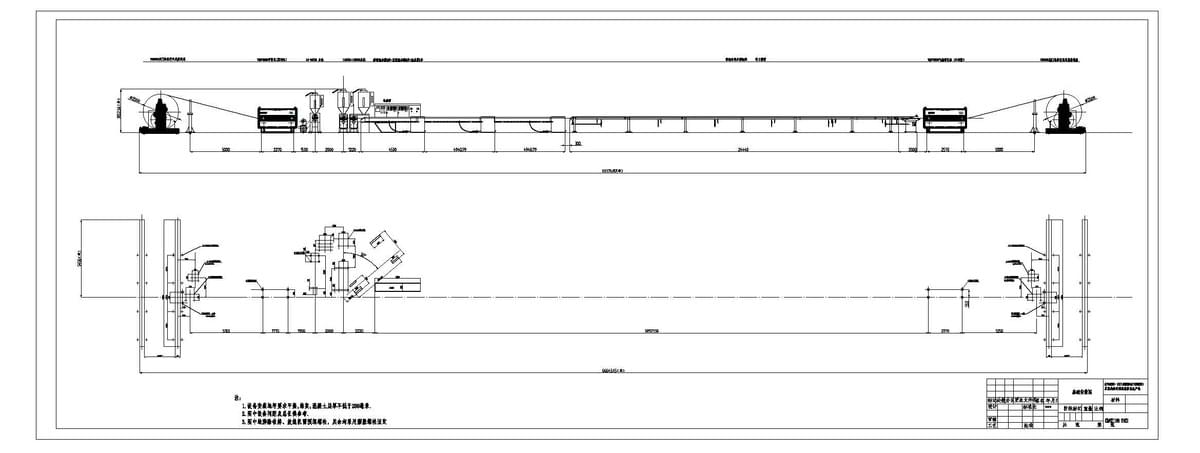

  • cable extruder layout from ningbo capstian technology

    Cable Extruder Layout

    There are many materials used to apply the insulation/sheath layer, the choice of polymers also depends on the type of cable, its application and installation locations. Frequently used and common polymers are PVC (PVC polyvinyl chloride) and PE (polyethylene). Polymers such as XLPE (cross-linked polyethylene), HDPE (high-density polyethylene), LSZH (zero halogen content), HFFR (halogen-free flame retardant polymers) and others are also used.

  • Main Components of Wire Extruder

    Capstian Provide Old Extruder Update

    broken image

    Magnetic Pay-off

    Bobbin size: 400-630mm

    broken image

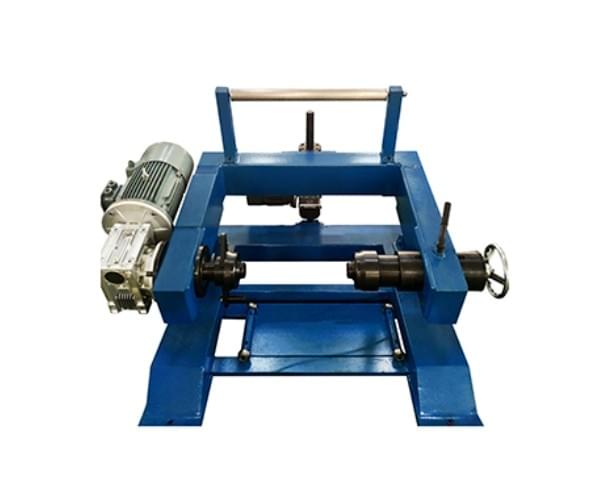

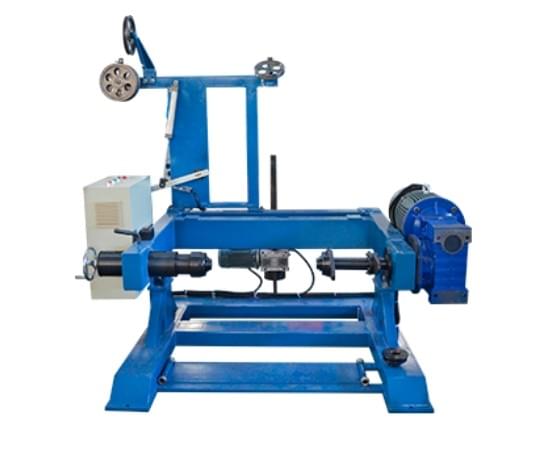

    Active Pay-off

    Bobbin size: 500-1250mm

    broken image

    Motorize Pay--off

    Bobbin size: 400-800mm

    broken image

    Dual Active Pay-off

    Bobbin size: 300-630mm

    broken image

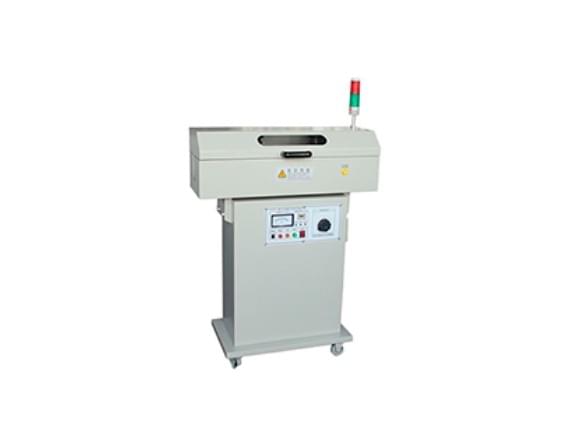

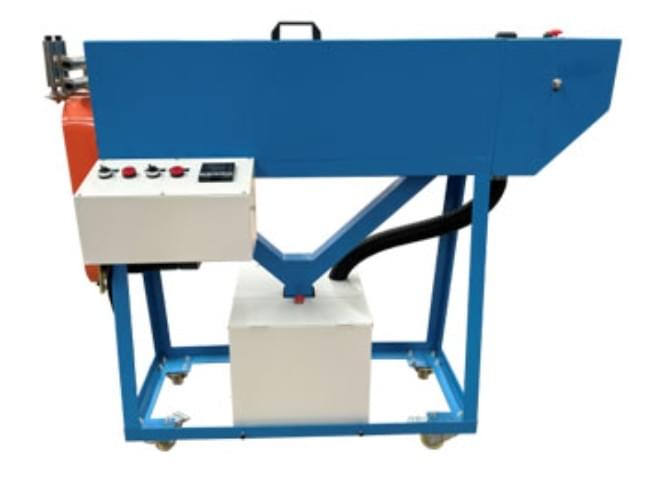

    Spark Tester

    Application: 1-25kv

    broken image

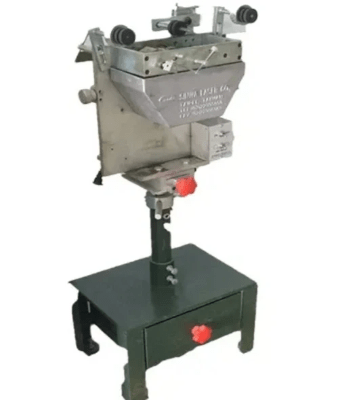

    Talc powder applicator

    Powder storage: 10KG

    broken image

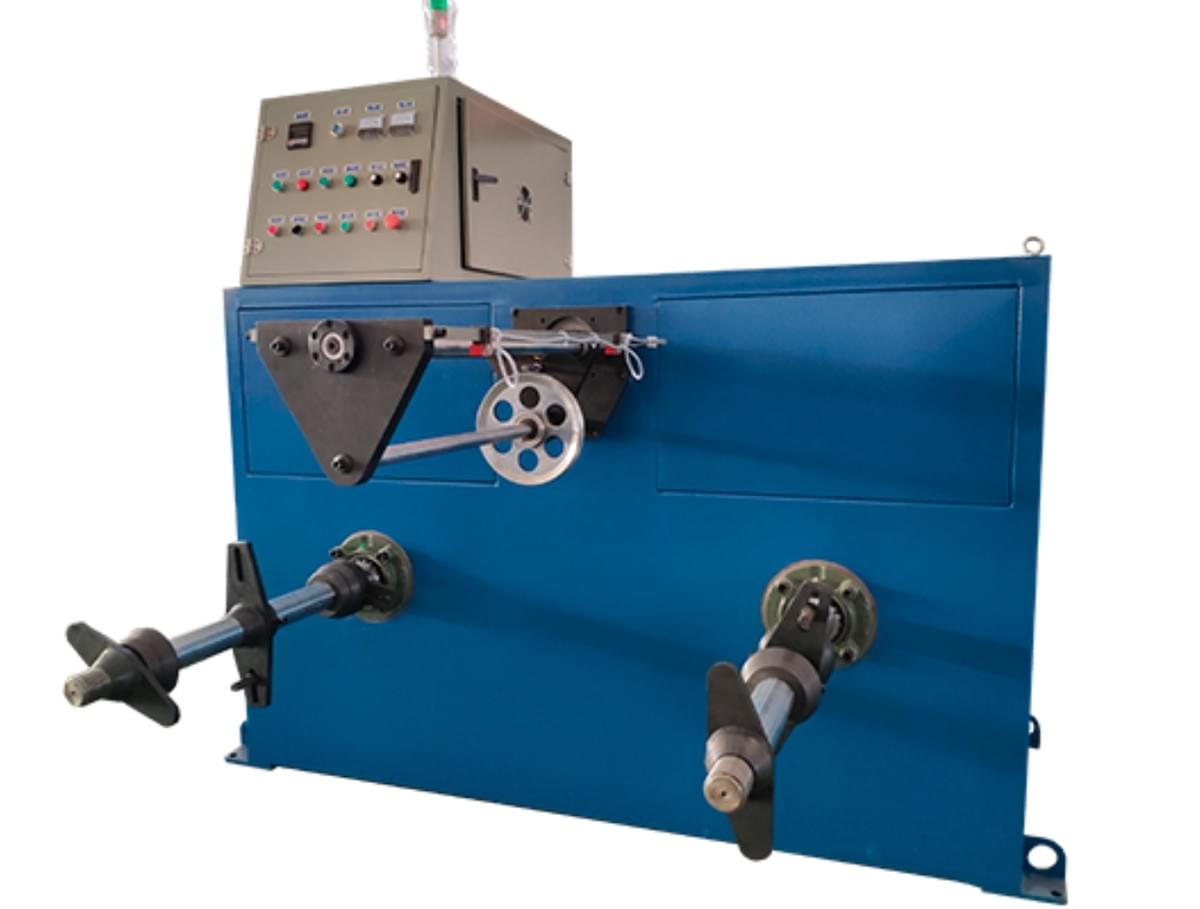

    Dual Take-up

    Bobbin size: 400-630mm

    broken image

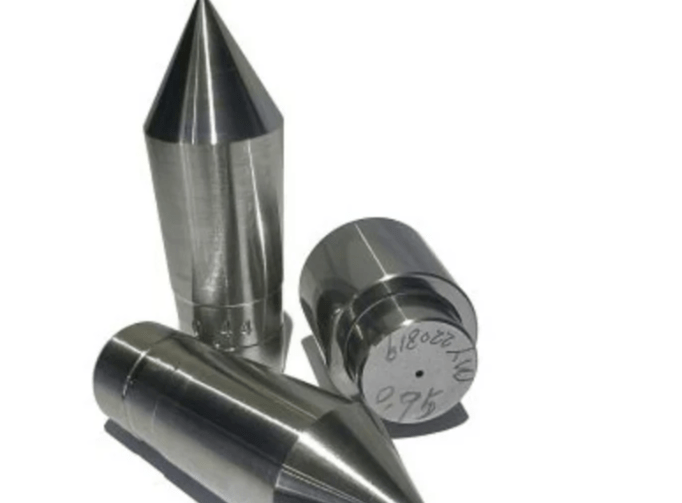

    Extruder Die

    Customized

    broken image

    Printer

    Oil Ptrinting Type

    broken image

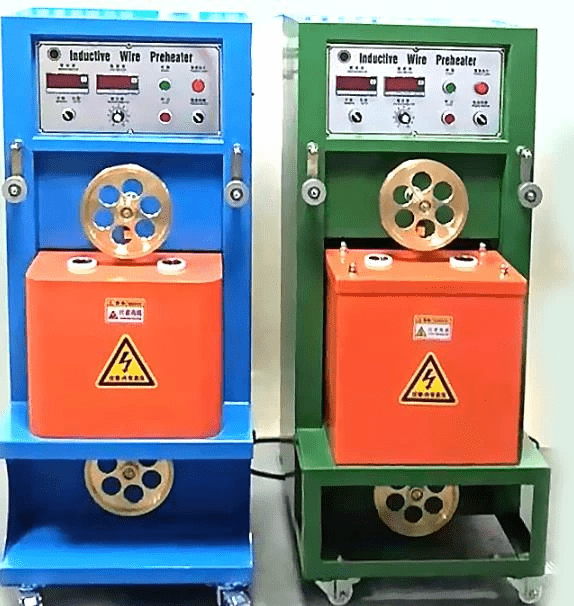

    Copper wire pre-hearter

    Line speed: 300m/min max

    broken image

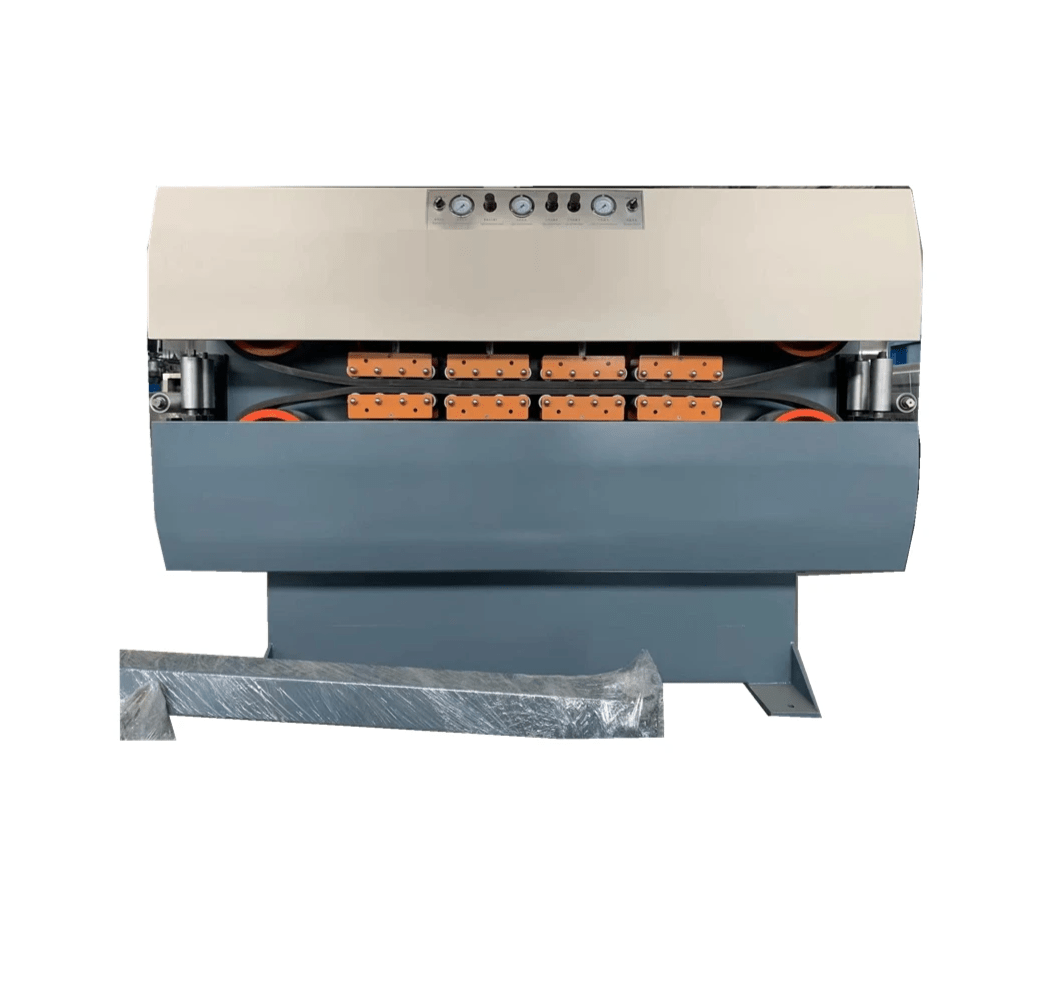

    Caterpillar

    500-3200KG

    broken image

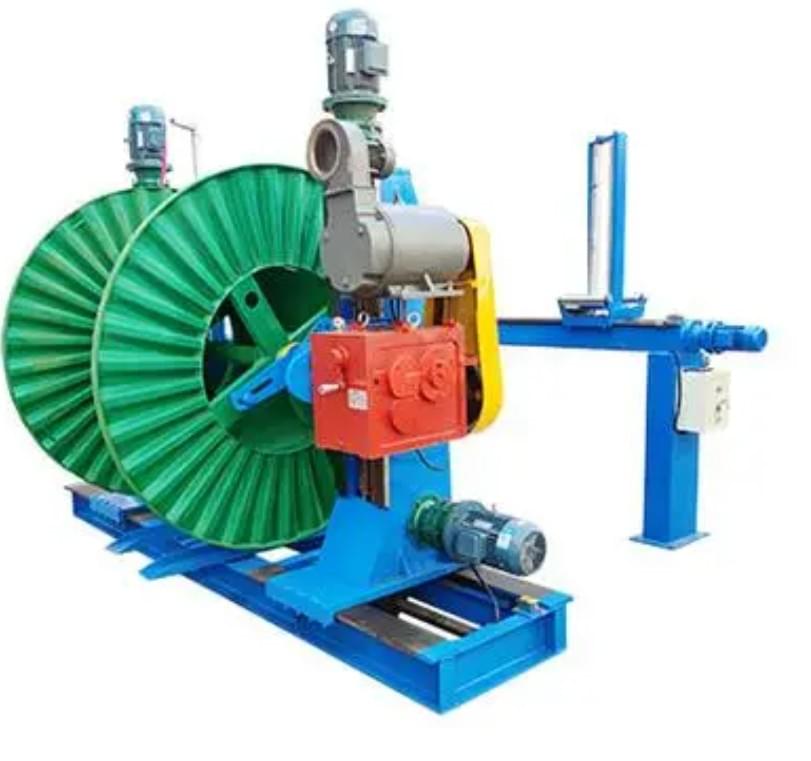

    Pay-off&Take-up

    Bobbin Size: 800-3150mm

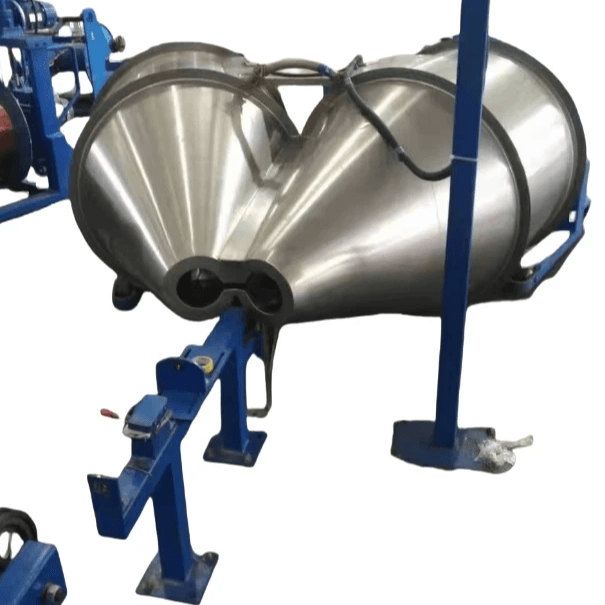

    flyer pay-off

    Flyer Active Pay-off

    Bobbin: 630mm 1200m/min

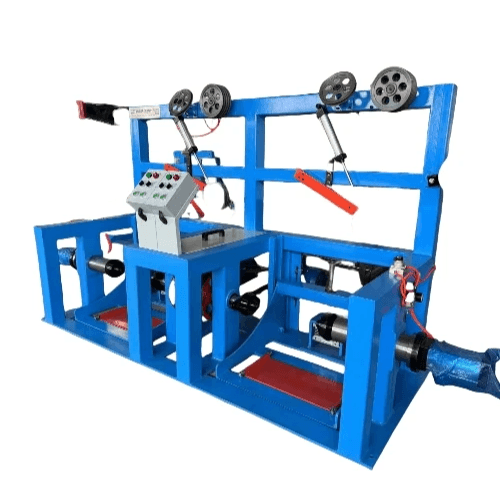

    Dual Bobbins Active Pay-off

    Dual Bobbins Active Pay-off

    Bobbin Size: 500-630mm

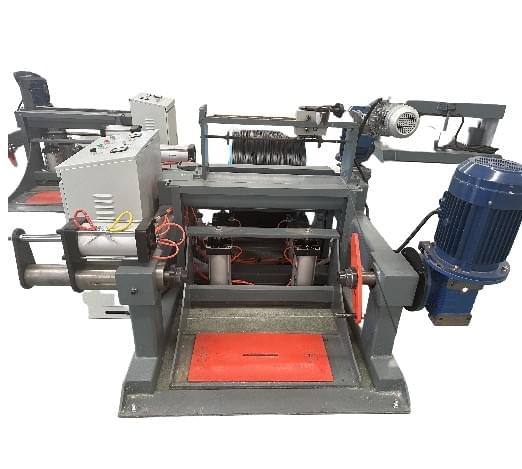

    Dual Bobbins Take-up

    Dual Bobbins Take-up

    Bobbin Size: 500-1250mm

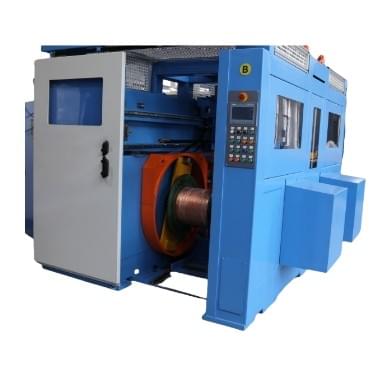

    Dual Bobbins automatic change bobbin Take-up

    Dual Bobbins Take-up

    1200m/min 630-1250mm

  • Check Out Other Quality Extrusion Lines

    The SJ-70+35 extrusion line is our star product. Its automated system effectively reduces energy and labor, plus we use industry-renowned, high-quality components to reduce maintenance costs for you.

    For years, we concentrate on your costs, capacity, and profitability and make our flexible supply chain and intelligent logistics systems responsive in an effort to provide the most cost-effective solutions.
