Power Cable Sheath Extruder Line
Our power cable jacket extrusion line is specifcallydesigned for low to high-voltage cable sheathing and extrusionrequirements.Our 200mm or 120mm wire extruder line delivers exceptional performance, ensuringprecise and effcient cable sheathing, applicable for PVCPE,LDZH, LDLH,semiconductor PVc,semiconductor PE.and more.
Technical Parameter
SJ70 to SJ200 Power Cable Jacket Extrusion Line
Layout of SJ180/25 Cable Extruder
Dual pay-off and take-up
Wire Sheath Extrusion Machine

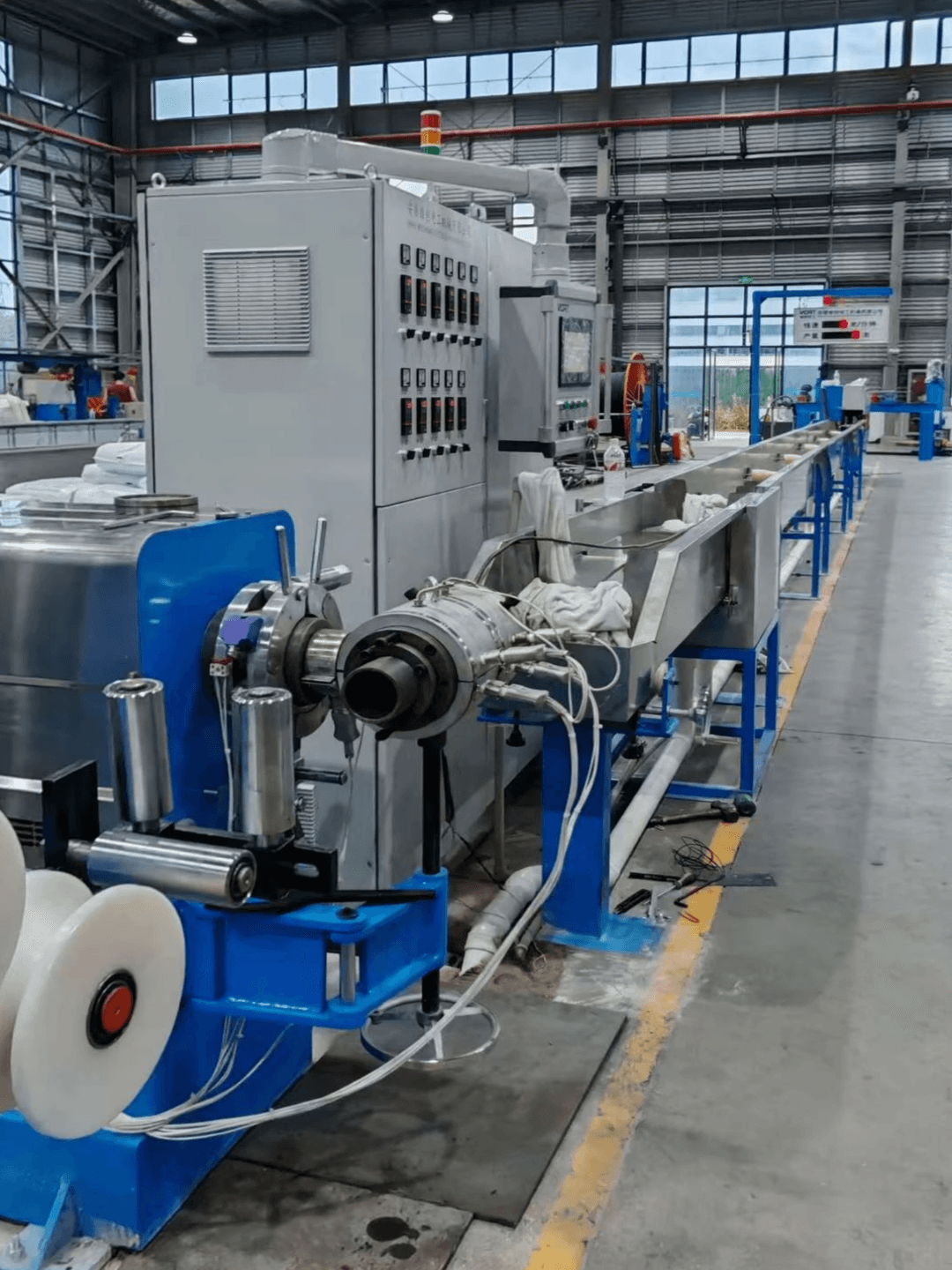

SJ-90/25 Wire Extruder
Input conductor dia.:Ø3- Ø30mm
Extruding Sheath out dia.:Ø5- Ø40mm
Screw rod diameter: Ø90mm
Screw L/D: 25:1
Main extruder screw rod speed: 80r/min
Max extrusion capacity: 280kg/h(PVC)
Haul-off linear speed: 3-120m/min

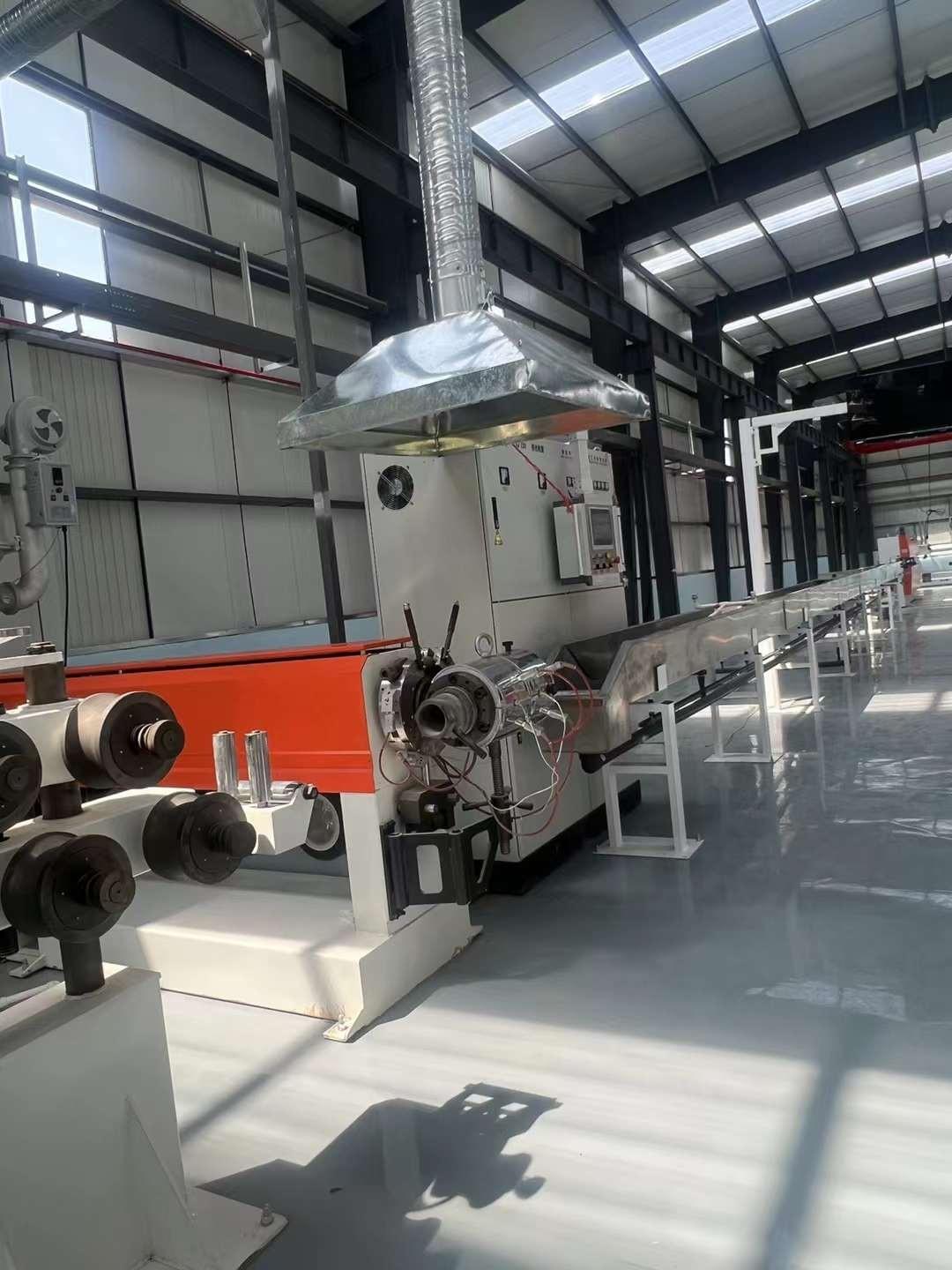

SJ-120/25 Wire Extruder
Input conductor dia.:Ø20- Ø90mm
Extruding Sheath out dia.:Ø25- Ø100mm
Screw rod diameter: Ø120mm
Screw L/D: 25:1
Main extruder screw rod speed: 60r/min
Max extrusion capacity: 480kg/h(PVC)
Haul-off linear speed: 3-70m/min

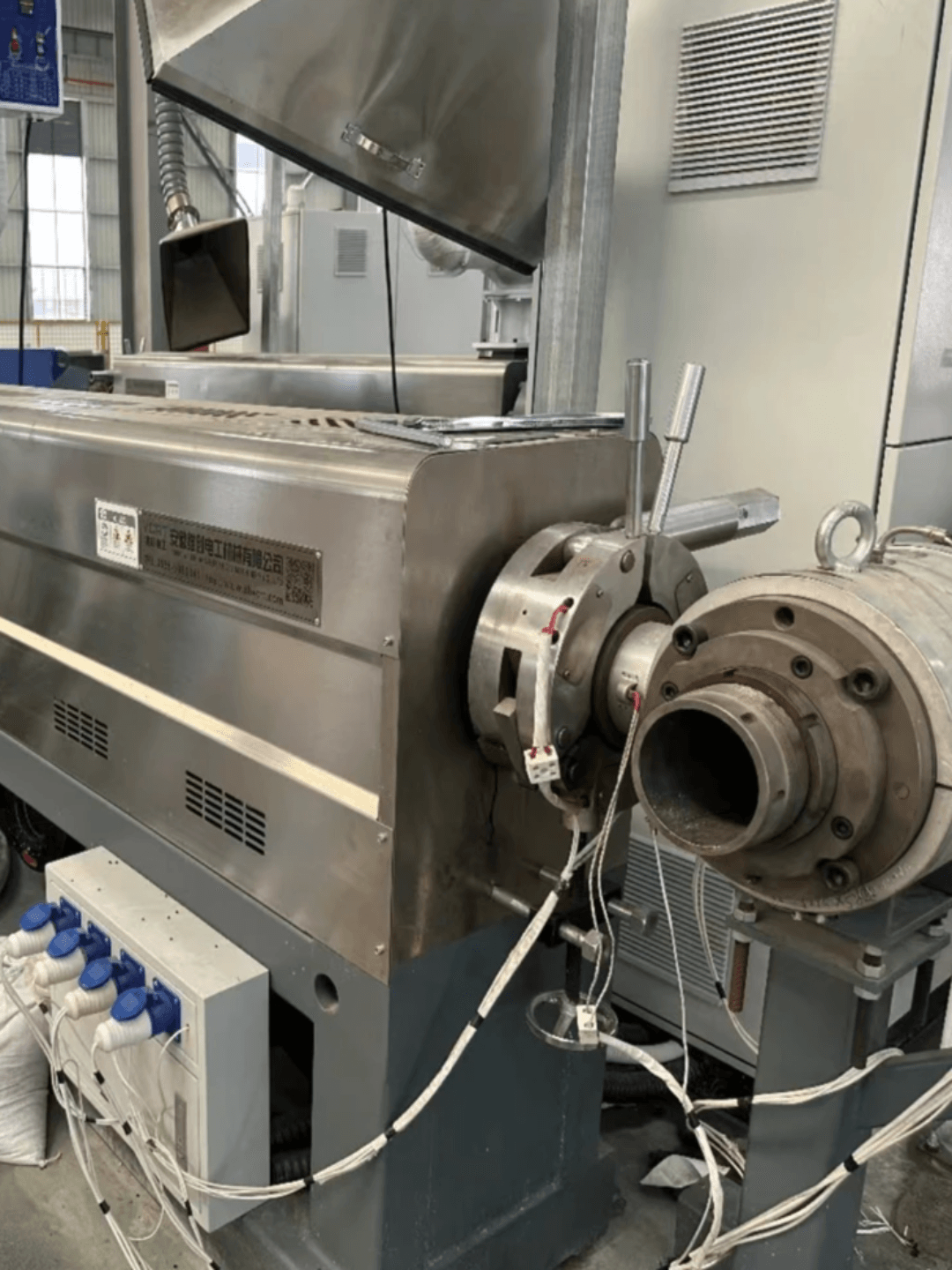

SJ-150/25 Wire Extruder
Input conductor dia.:Ø20- Ø130mm
Extruding Sheath out dia.:Ø25- Ø140mm
Screw rod diameter: Ø150mm
Screw L/D: 25:1
Main extruder screw rod speed: 50r/min
Max extrusion capacity: 800kg/h(PVC)
Haul-off linear speed: 3-60m/min
