Cantilever Single Twisting Machine
Our single twisting machines are specially designed for the stranding of insulated conductors with or without inner lapping for the production of data cables and special cables. At CAPSTIAN our single twisting machine are tailor made for specific cable productions according to the customer's requirements. Please inquire for our models for reel dia. 500 – 630– 800 – 1000 and 1250 mm.
More Technical Detail

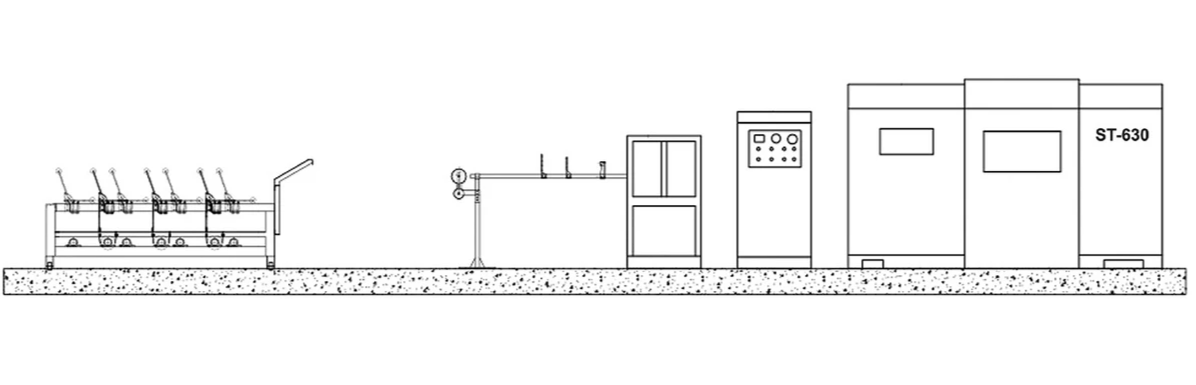

High Speed Cantilever Single Stranding Machine
What Model of Capstian Stranding Machine
Concentric Taping Unit
Closing wire stand
400-630 Magnetic Pay-off
400-630 Active Pay-off
400-630 Motorize Pay-off
400-630 Passive Pay-off
BV,BVR Cabling Machine
Power wire, CAT 5 and CAT 6 and 7 data cable, communication cable and other special high speed molding twist, meanwhile, and it can wrap foil and mica tape, and special for making unilay wires.

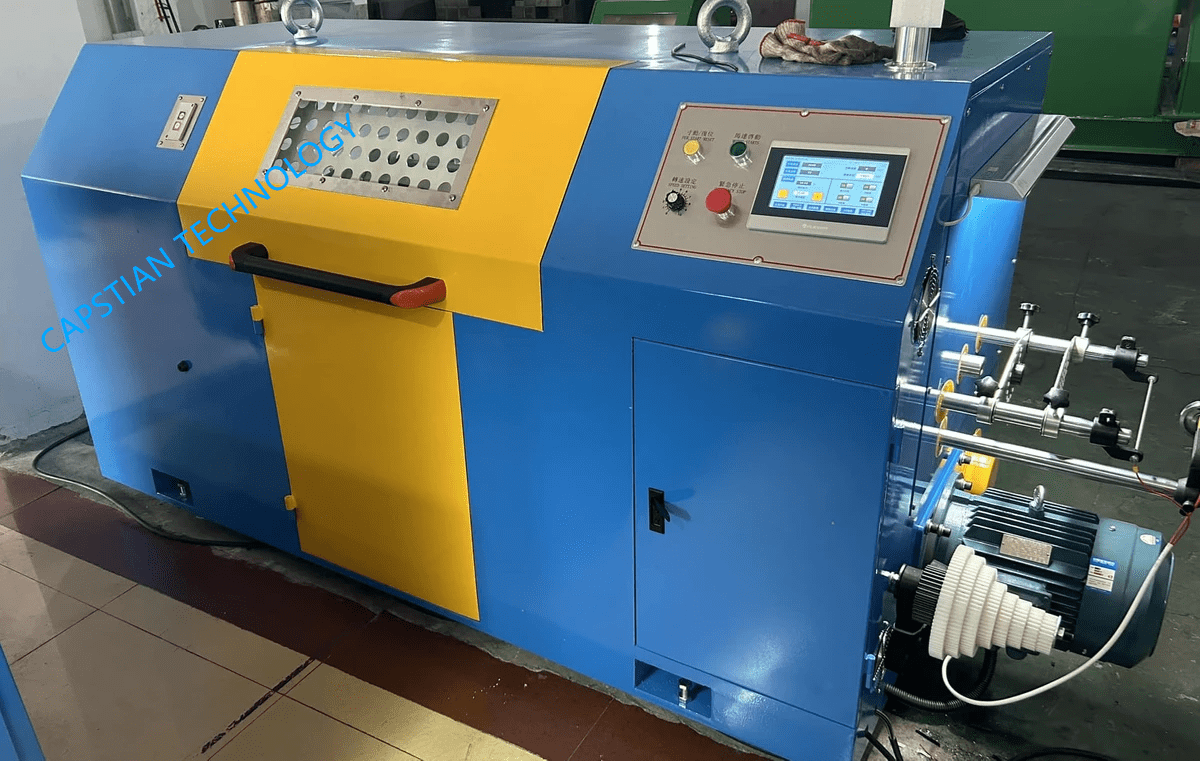

Double Twisting Machine
This machine is dedicated to twisting Aluminum and Copper round compress conductor. This project contains external rotation pressure die structure, and provide the required traction used for compress conductor, when the conductor compress, the take-up part of bundling machine will obtain, and have a special line way to reduce torque between rotating traction wheel and take-up bobbin, can ensure that there is a good round conductor.

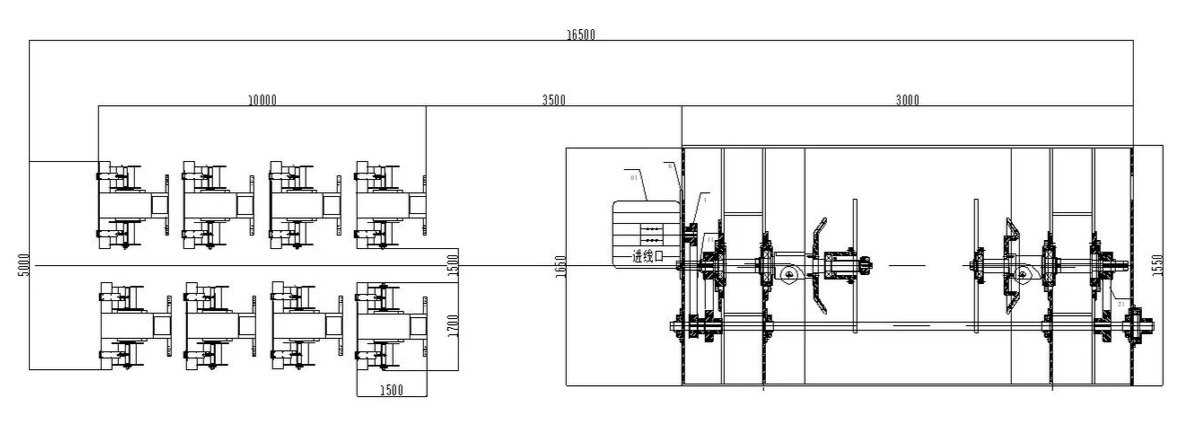

Main Components of High Speed Wire Bunching Machine
Main Components of Capstian Wire Buncher

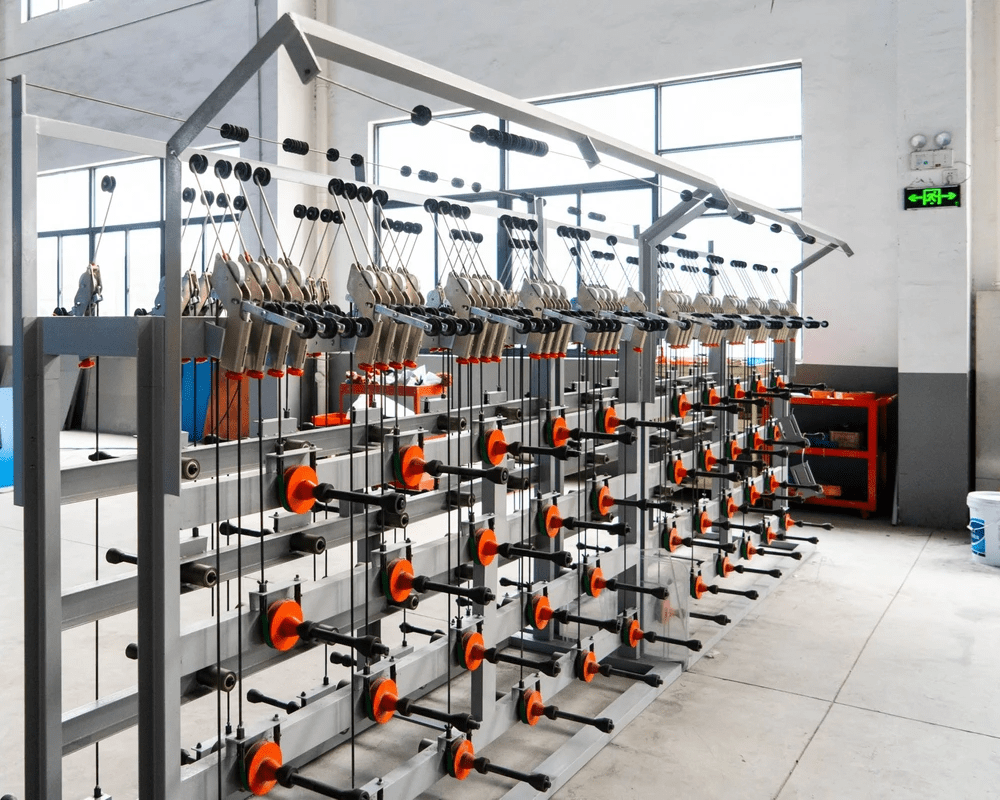

Magnetic Pay-off
Bobbin size: 800-1000mm

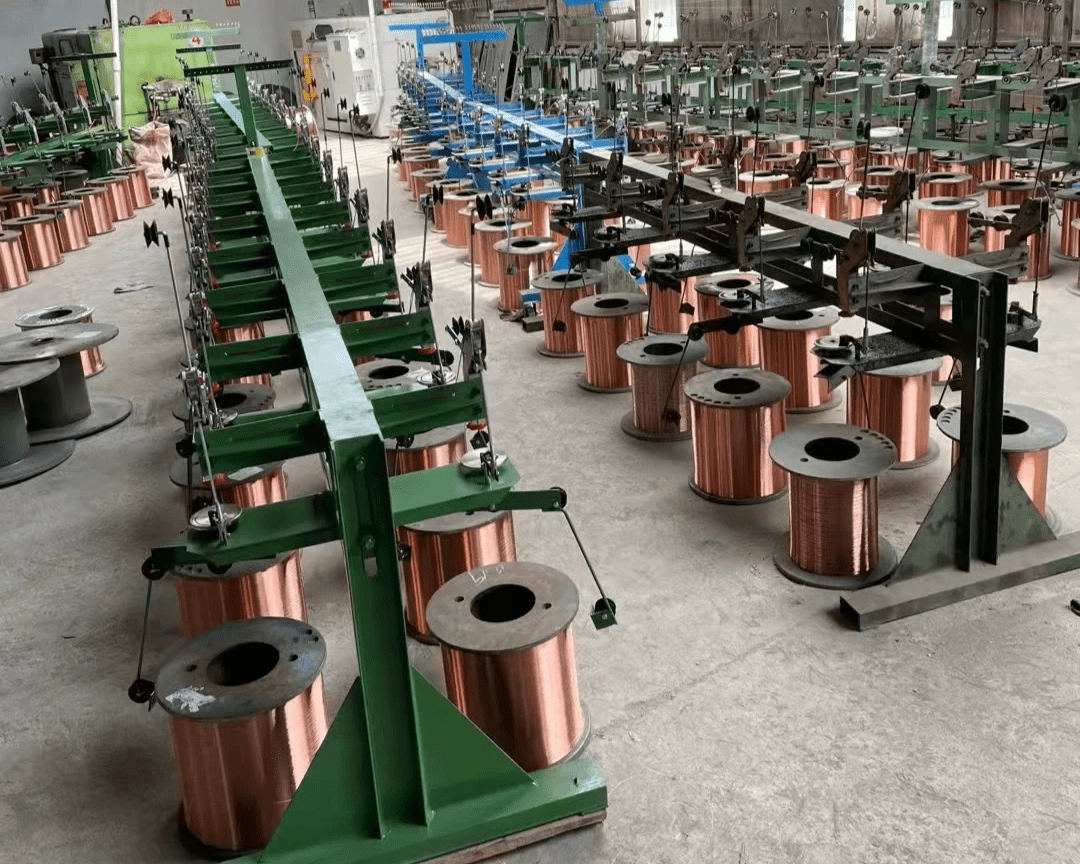

Static Pay-off
Bobbin size: 180-300mm
Dual Active Pay--off
Bobbin size: 400-630mm
Static Active Pay-off
Bobbin size: 300-630mm

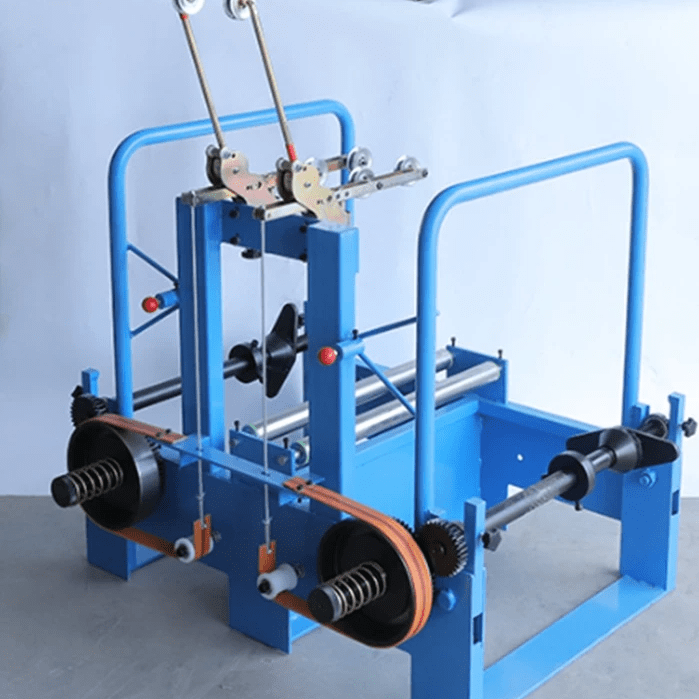

Active Pay-off
Bobbin size: 400-630mm
Back-Twist Machine
Bobbin size: 500-630mm
Motorized Active Pay-off
Bobbin size: 400-630mm
Japanese Pay-off
Bobbin size: 400-630mm

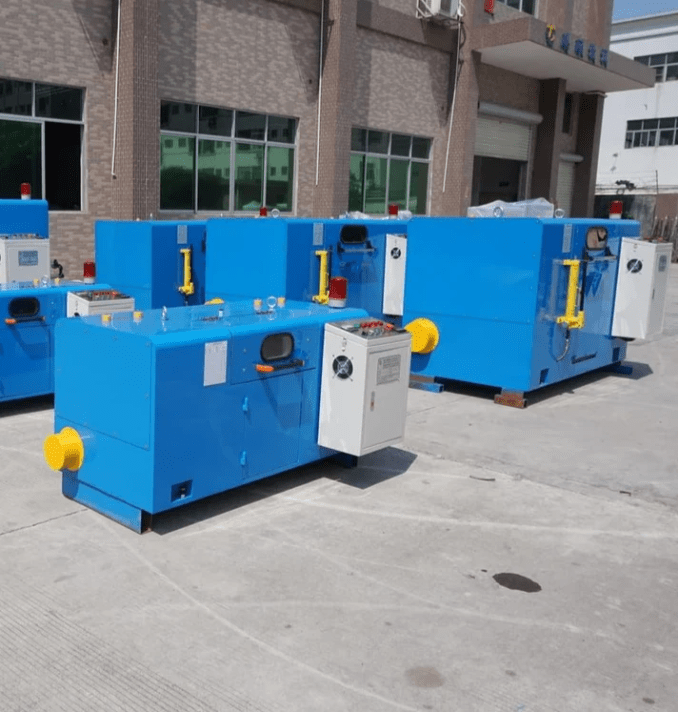

Double Stranding Machine
Bare copper, tinned wire, enameled wire;
Control: PLC + HMI + Inverter control;
Stranding direction: S or Z;
Tension: tensionis adjusted by magnetic clutch;
Rotation speed: max. 2000 r/min;
Bearing lubrication: thin oil lubrication, circulation cooling;
Bobbin loading/unloading: hydraulic;
