Rubber Sheathed Cable Continuous Vulcanization Catenary Line
SJ-90 rubber sleeve continuous vulcanization extruder is a special machine for cold feeding rubber sleeve extrusion molding, suitable for the production of insulation sheaths for rubber cables such as natural, styrene butadiene, green butadiene, nitrile, ethylene propylene, chlorinated polyethylene, chlorosulfonated polyethylene, silicone rubber, etc.
Technical Parameter
SJ-90/16 Catenary Continuous Vulcanization Line

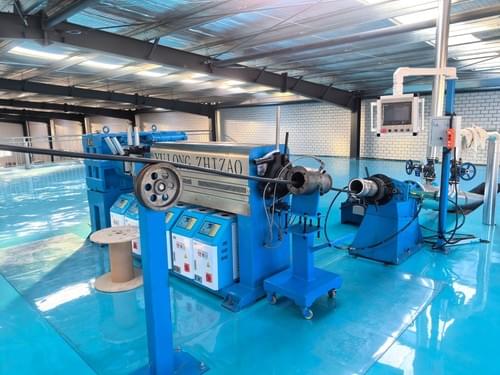

Layout of SJ-90 Rubber Continuous Catenary Vulcanization Machine
- PN2000 Shaftless pay-off stand(not need foundation installation)
- 1500kg upper belt type wheel capstan

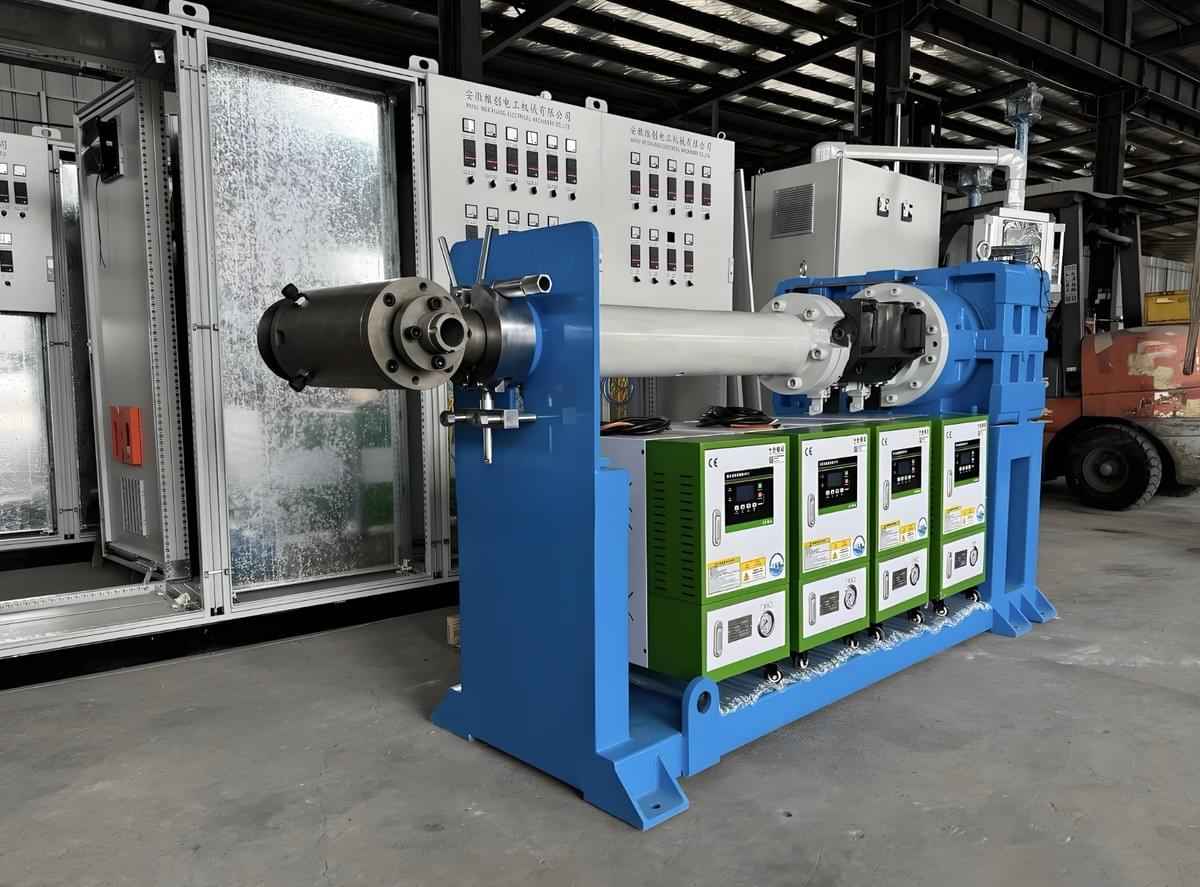

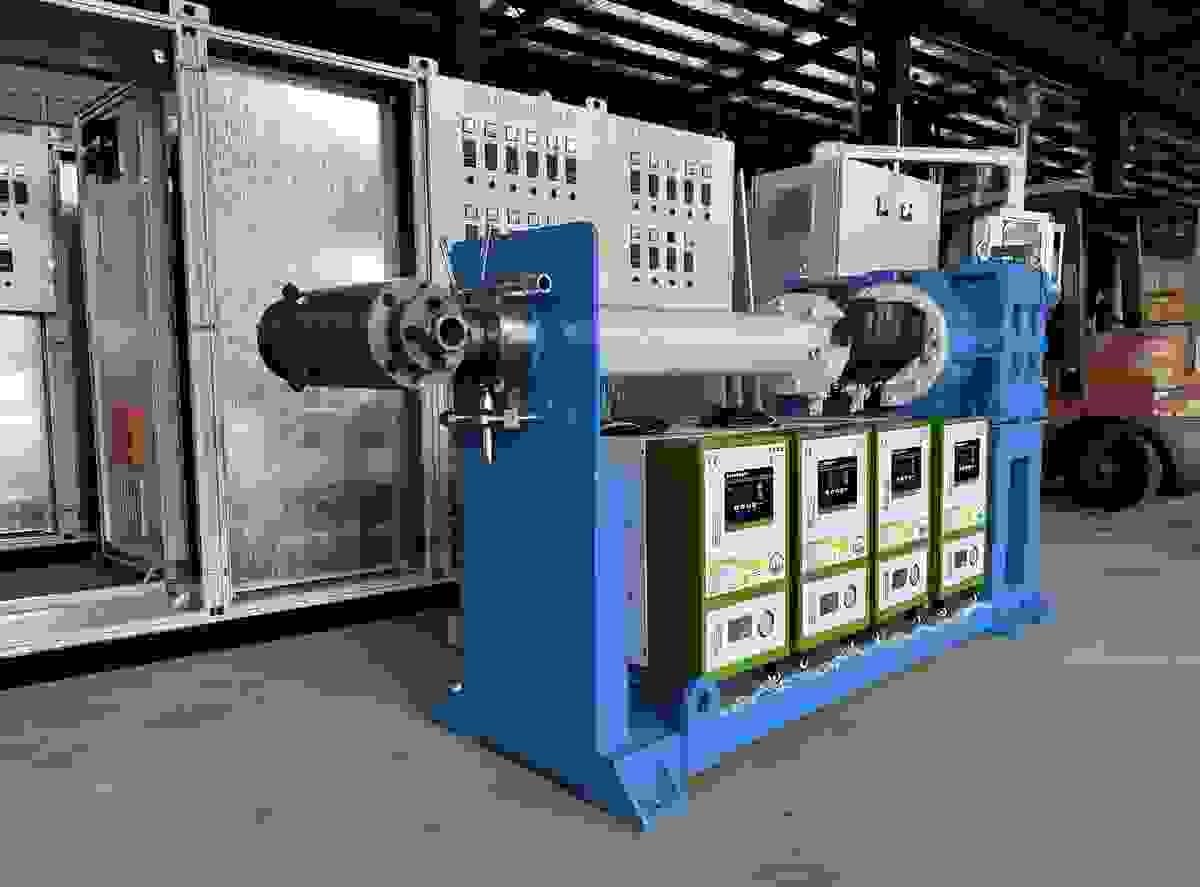

- SJ-90/16 rubber extruder(Including mold temperature machine)

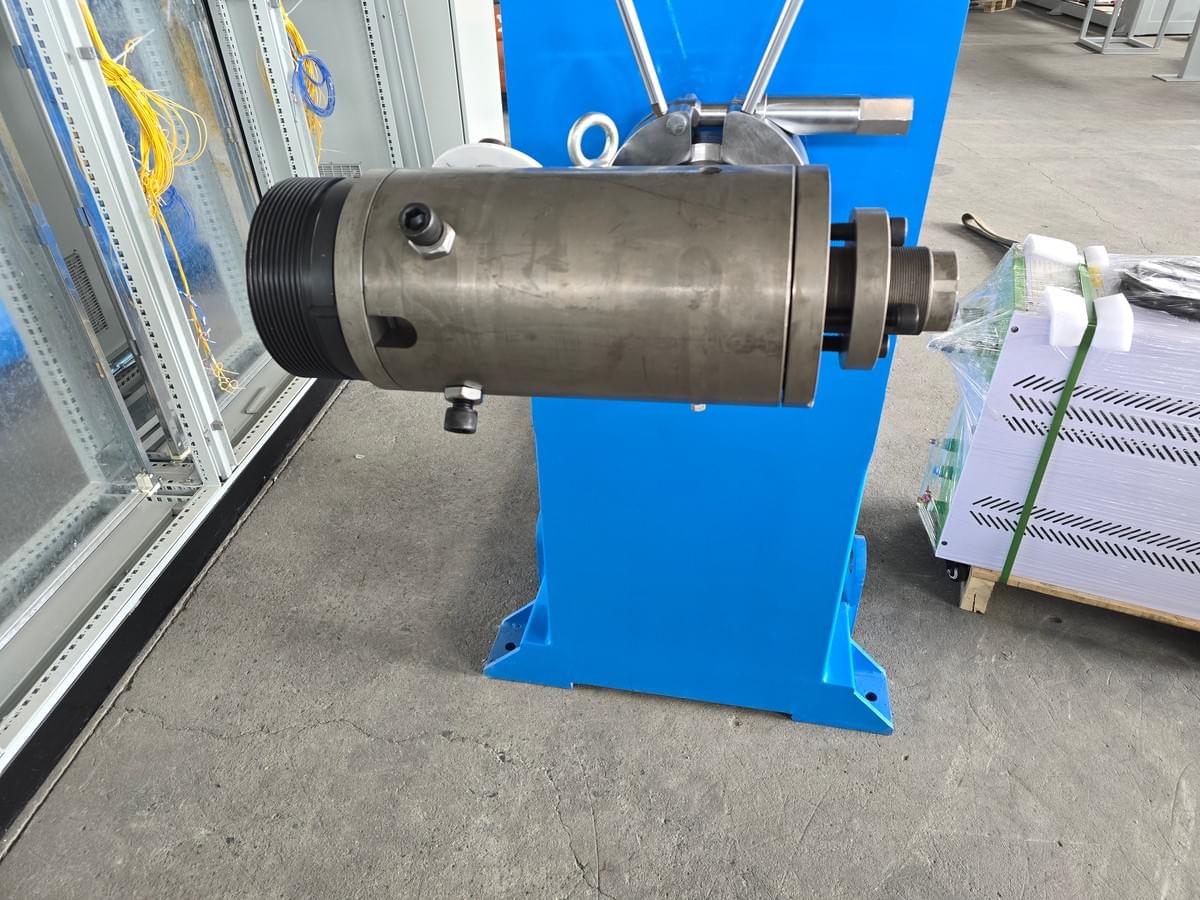

- 40 Single extrusion cross head
- Hydraulic upper seal
- Steam heating Vulcanized tube 159mm*8mm
- Cooling Vulcanized tube 100mm*8mm
- Hydraulic lower seal (secondary seal)
- Water air balance control system
- Catenary controller
- Multi claw blow dryer
- 1500kg Front Caterpillar capstan
- PN2000 Shaftless take-up with traverse stand(not need foundation installation)
- Tube supports (Positioning wheel, steering wheel, limit roller)
- Electrical control system
As a turnkey supplier of complete CV lines
By using our insulation technology, you can produce high-quality cable with a limited investment.
Main Extruder
SJ-70 to 120 and L/D 16:1
Catenary Vulcanization Tube
Semi suspended chain inclined type
Extrusion Cross-Head
Adjustable head and Co-extrusion
Hydraulic Seal
Upper and Lower Sealing device
Puematic Caterpillar
2400kg to 5000kg Pulling force
Pay-off and Take-up

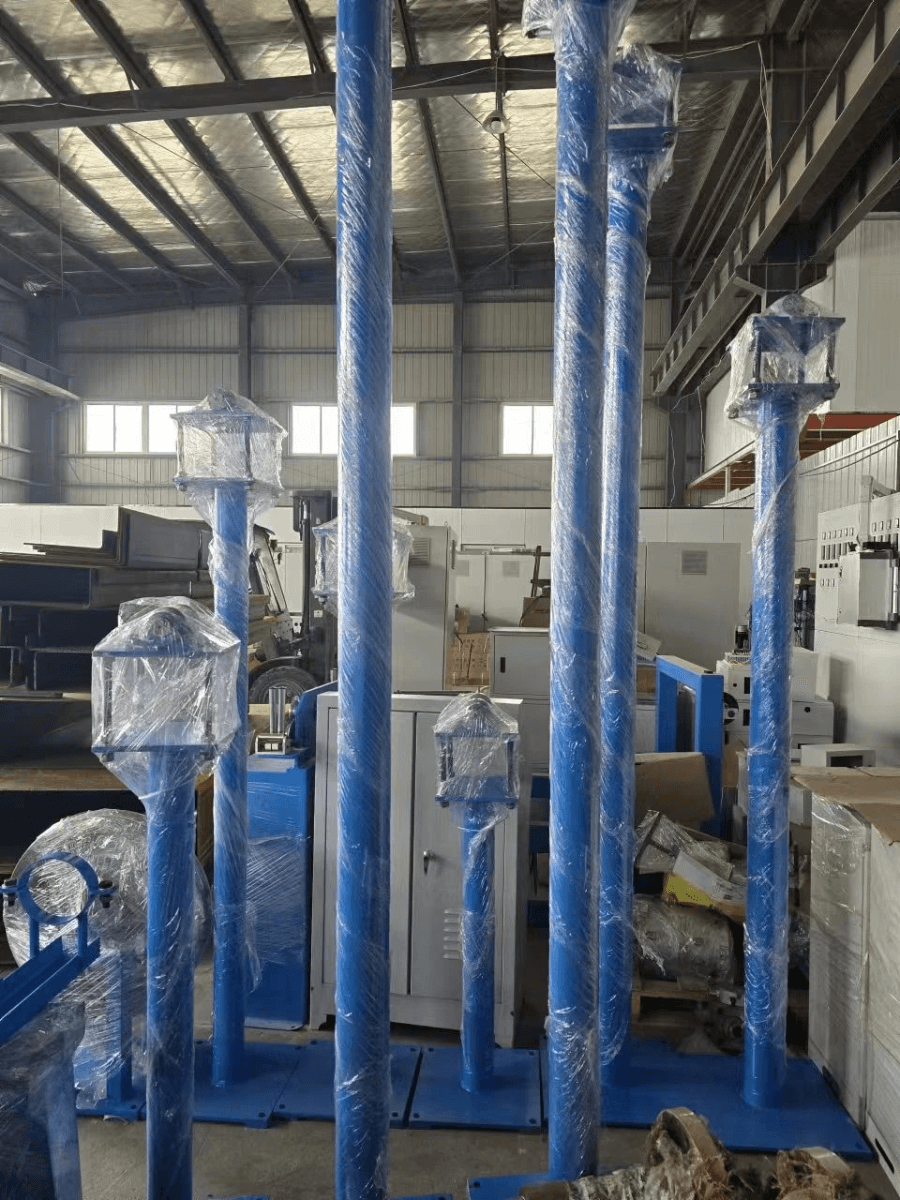

Portal or Column Type PN1000 to PN3150
Belt Wheel Type Capstan
1500kg AC Motor
Guide Wire Rack
Equip full line
Tube Support Rack
Fulle set tube rack
