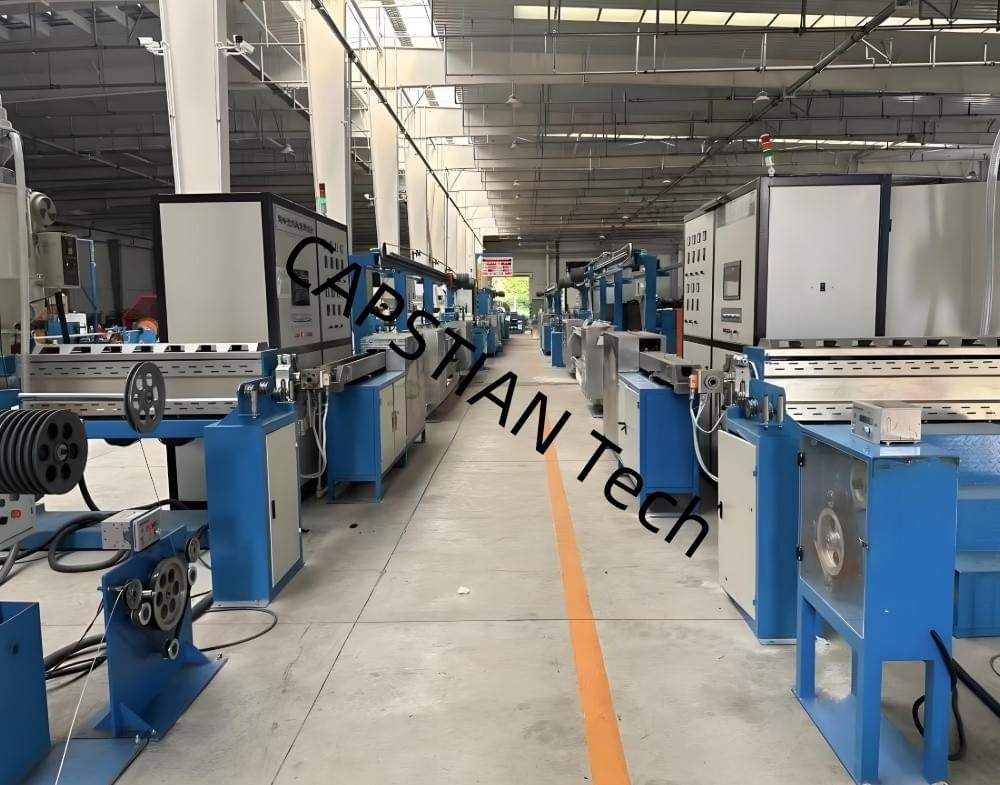

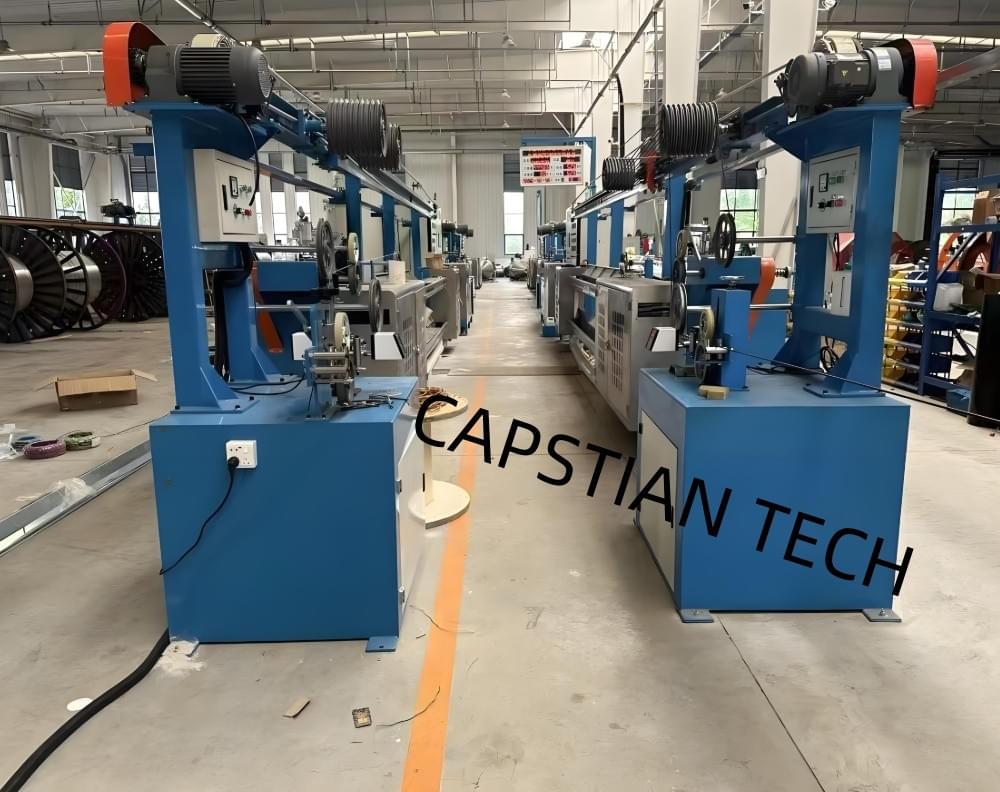

SJ-70mm High Speed Electric Wire Extrusion Machine

Applications

The 70mm Electric Wire Extrusion Machine is perfect for producing:

Electrical wires (single-core and multi-core)

Automotive cables

Telecommunication cables

Specialty wires for industrial and renewable energy applications

Key Features and Benefits

High-Speed Extrusion: Designed for maximum productivity, this machine offers fast extrusion speeds, ensuring efficient production cycles.

Precision Control: Equipped with advanced temperature and speed control systems, it guarantees uniform insulation and precise wire dimensions.

Durable Construction: Built with high-quality materials, the machine is robust, reliable, and designed for long-term industrial use.

Energy Efficiency: Optimized for low energy consumption, reducing operational costs while maintaining high performance.

User-Friendly Interface: Features an intuitive control panel for easy operation, monitoring, and adjustments.

Technical Specifications

Screw Diameter: 70mm

Extrusion Capacity: Up to 500 kg/h (depending on material and configuration)

Heating Zones: 4-6 zones with precise temperature control

Cooling System: Efficient water cooling for consistent wire quality

Line Speed: Adjustable, up to 300 m/min

Power Supply: Customizable based on regional requirements

Dimensions: Compact design for efficient floor space utilization

Weight: Varies based on configuration

OD after extrusion：Ø0.5- Ø10.0mm

Screw rod rotation speed：90r/min

Max extrusion capacity：130kg/h

Capstan wheel diameter：Ø700mm

Traction line speed：300m/min

Pay-off bobbin size：Ø400- Ø630mm

Take-up bobbin size：Ø630- Ø800mm

Total power：68kw

Why Choose the 70mm Electric Wire Extrusion Machine?

This machine is engineered to meet the highest industry standards, offering a perfect balance of speed, precision, and reliability. Its versatility and energy-efficient design make it an ideal choice for manufacturers looking to enhance their production capabilities while reducing operational costs.

Upgrade your wire and cable production process with the 70mm Electric Wire Extrusion Machine – the ultimate solution for quality and efficiency. Contact us today for more details or to request a demo!
